Custom Rubber Molding Parts & Services

(click on thumbnail to enlarge)
Founded in 1988, ACE Rubber Products, Inc. is an industry leading provider of custom rubber molding services and is committed to embracing the latest technologies and material advances for injection, transfer, and compression molding. Ideal for higher volume projects, our injection equipment is capable of 300-500 tons of force and handling shot sizes up to 15 lbs. For smaller production runs, our compression presses, which feature a ram diameter of 6-36", are capable of manufacturing parts with dimensions of up to 42" in length and width and 40" in diameter.
We have proven expertise for working with a number of different materials, from natural rubber and silicone to a long list of synthetic elastomers with durometers ranging from 20 to 95 Shore A hardness and temperature resistance from -100°F to +500°F. We can help choose the best materials to deliver the specialized performance characteristics your job requires, and Mil-spec, FDA approved, and UL listed formulations are all available. With tolerances that meet or exceed published RMA standards, we produce consistent, repeatable results, first part to last, one order to the next.
Family owned, we operate with agility and react quickly to changing customer demands. Our client services staff is courteous, responsive, and committed to ensuring on time deliveries of your valuable components. We offer many additional services, including reverse engineering, tool design, as well as finishing options to meet your start-to-finish production needs. Contact us today to learn how our custom rubber molding services can benefit your next project.

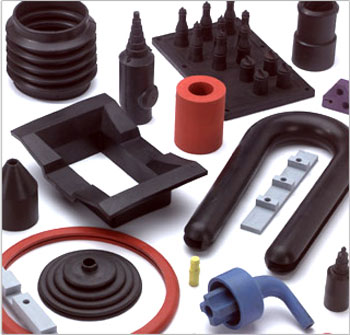

EXAMPLES OF WORK
- Custom Injection Molded Abrasion Resistant Rubber Strips Bonded to Brass
- Injection Molded FDA White List Rubber Cups
Custom Rubber Molding Capabilities:
- Custom Rubber Molding Processes
-
- Injection
Transfer - Compression
- Injection
- Materials
-
- Rubber
- Elastomers
-
- Aflas
Butyl
Epichlorohydrin
Ethylene Propylene
Fluorocarbon Elastomer
Hydrogenated Nitrile
Nitrile - Natural
Neoprene
Fluorosilicone
Silicone
SBR
Urethane
- Aflas
- Durometer Range (Shore A)
- 20 to 95
- Temperature Range (Typical)
- -100 to 500 °F
- Colors
- Mineral Fillers
- Injection Presses
- 300 to 500 tons
- Silicone Stuffer
- 70 lb
- Injection Shot Size
-
- Up to 15 lb
- Higher for Compression
- Part Diameter
- Up to 40 in
- Press Length
- 12 to 42 in
- Press Width
- 12 to 42 in
- Ram Travel
- 6 to 36 in
- Tolerance
- RMA
- Inspection
- MIL-I-45268A
To National Institute of Standards and Technology
- Testing
-
- Tensile
- Outside Labs
- Quality Control
- Manual
- Additional Services
-
- Milling (50")
Rolling (22")
Extruding
Deflashing - Post Cure Oven (36" x 48")
Reverse Engineering
Tooling Design
- Milling (50")
- Finishes
-
- Plating (all types)
- Anodizing (Zinc, etc.)
- Production Volume
-
- Prototyping
Short Runs - Long Runs
- Prototyping
- Typical Lead Time
-
- 2 to 3 weeks
- 4 to 6 weeks (Tooling)
Additional Information
- Industry Focus
-
- Aircraft
Aerospace
Construction
Communication
Food - Electronics
Oil Field
- Aircraft
- Intended Application
-
- Vacuum Cups & Retaining Rings
Custom Molded Parts
Line Clamp Cushions
Packers
Roller Donuts for the Glass Industry
Hat Bags - Rubber Strips for Cutting Cylinders
Rubber to Metal Bonding
Custom Gasket Seals
Custom O-Rings
Fuel Door Seals
- Vacuum Cups & Retaining Rings
- Industry Standards
-
- MIL-I-45208A
Mil-Spec - FDA
UL
- MIL-I-45208A
- File Formats
-
- CAD
